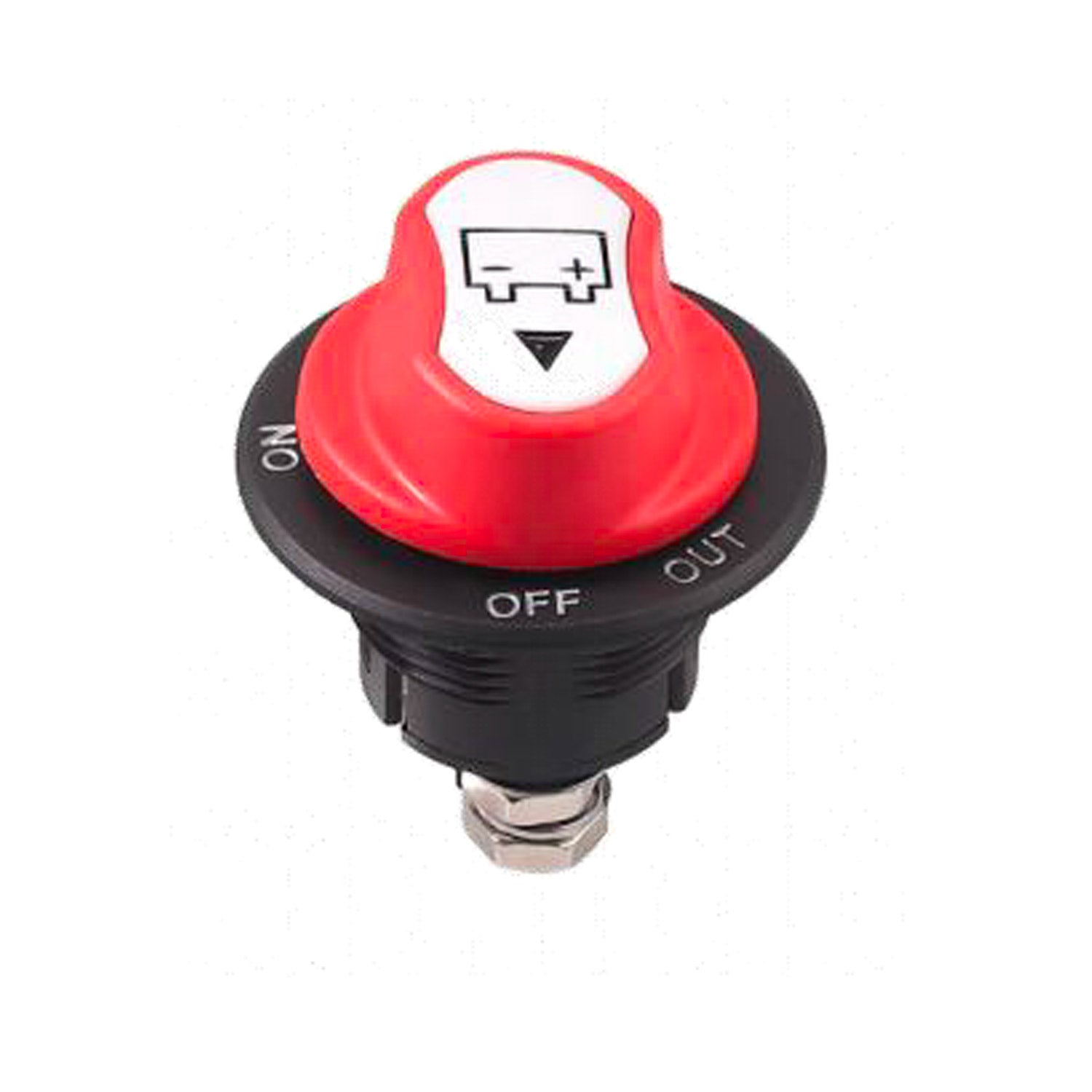

100A Battery Switch with OUT Position - Marine Use

Practical battery disconnect switch for interrupting and restoring power to your boat. The switch is suitable for voltages from 12-32 V and has a continuous load capacity of 100 A. The housing is made of sturdy plastic and the nuts are made of rust-proof and corrosion-resistant brass, ideal for use on board. OUT position which allows the knob to be removed as an anti-theft device.

Specifications:

• ON/OFF/OUT function
• For voltage from 12V to 32VDC
• Continuous load: 100A
• Maximum inrush current: 500A
• Number of poles: 2
• Connecting bolt: M6

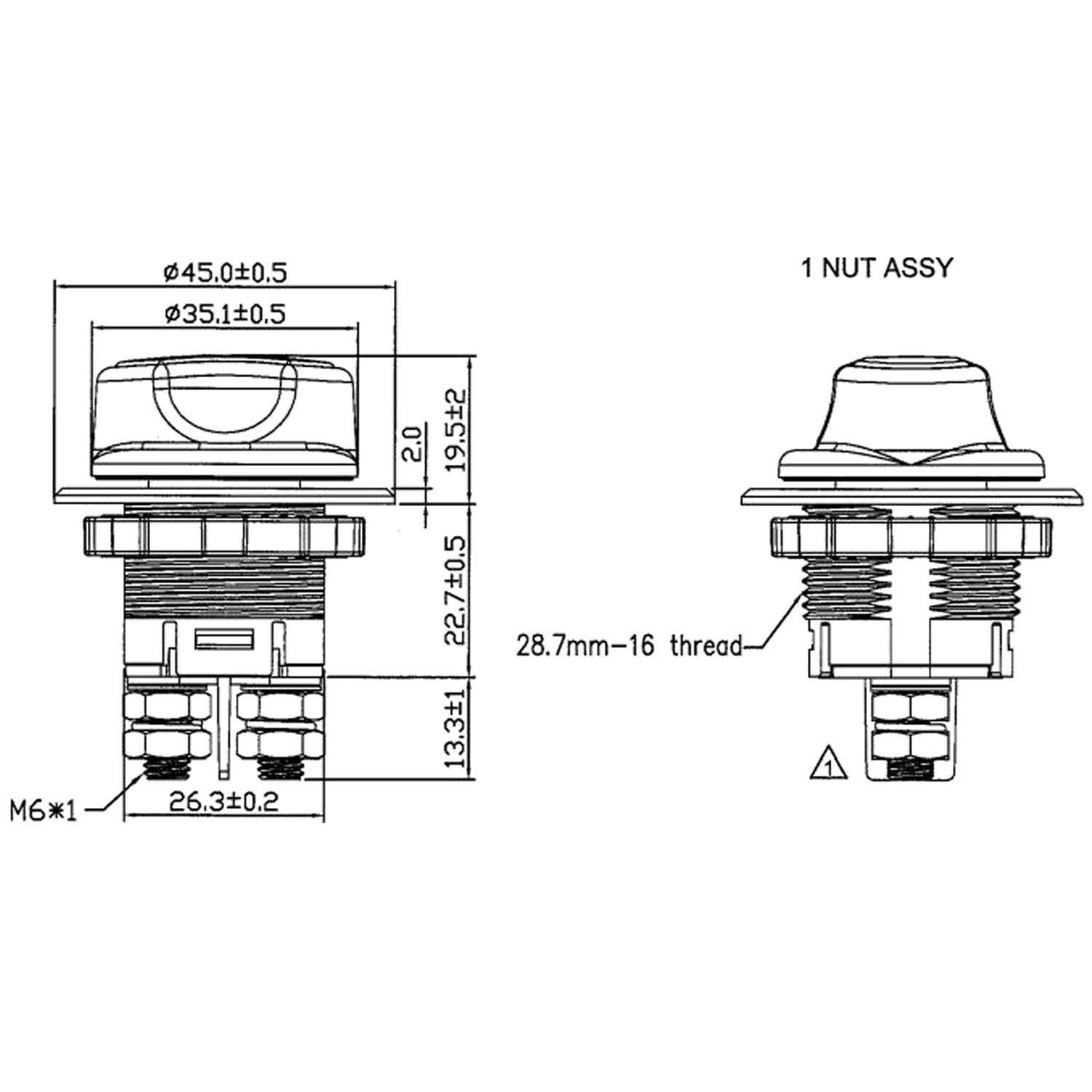

• Dimensions: Flange ø 45mm - Neck ø 26mm
